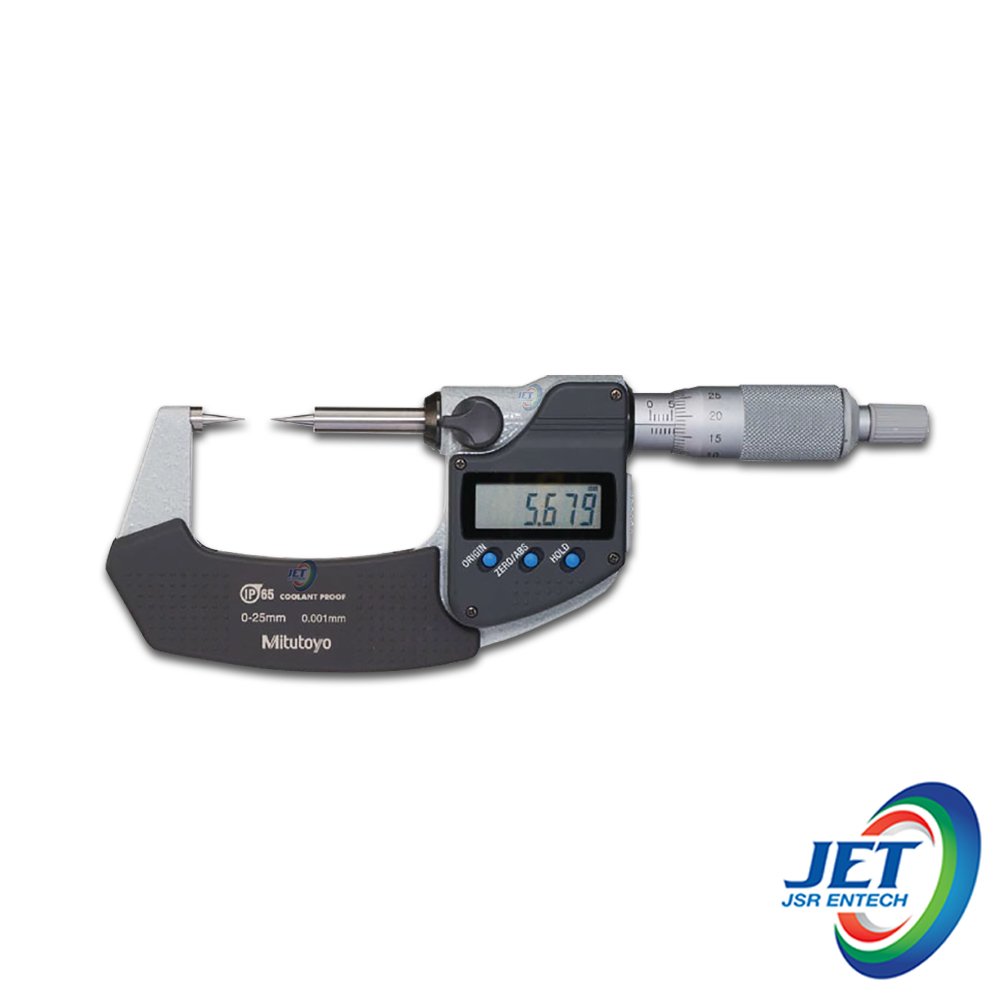

Mitutoyo Point Micrometer Series 342

Product DescrptionsIdea tool for measuring drill web diameters, small grooves and other hard-to-reach points.The measuring points (carbide tipped) have approximetely 0.3 mm radius.IP65 digimatic micremetersEquipped with Ratchet Stop for constant measuring force.Specification ( Model Unit : Metric )Order No.Range (mm)Resolution (mm)Maximum permissible error (μm)Point  Digimatic (LCD)(With carbide tip)342-251-300-250.001±215°342-252-3025-500.001±215°342-253-3050-750.001±215°342-254-3075-1000.001±315°342-261-300-250.001±230°342-262-3025-500.001±230°342-263-3050-750.001±230°342-264-3075-1000.001±330°Specification ( Model Unit : Inch/Metric )Order No.Range (in)ResolutionMaximum permissible error (in)Point  Digimatic (LCD)(With carbide tip)342-351-300-10.00005 in/0.001 mm±0.0001 15°342-352-301-2±0.0001 15°342-353-302-3±0.0001 15°342-354-303-4±0.0001515°342-361-300-1±0.0001 30°342-362-301-2±0.0001 30°342-363-302-3±0.0001 30°342-364-303-4±0.0001530° Measurement example.
