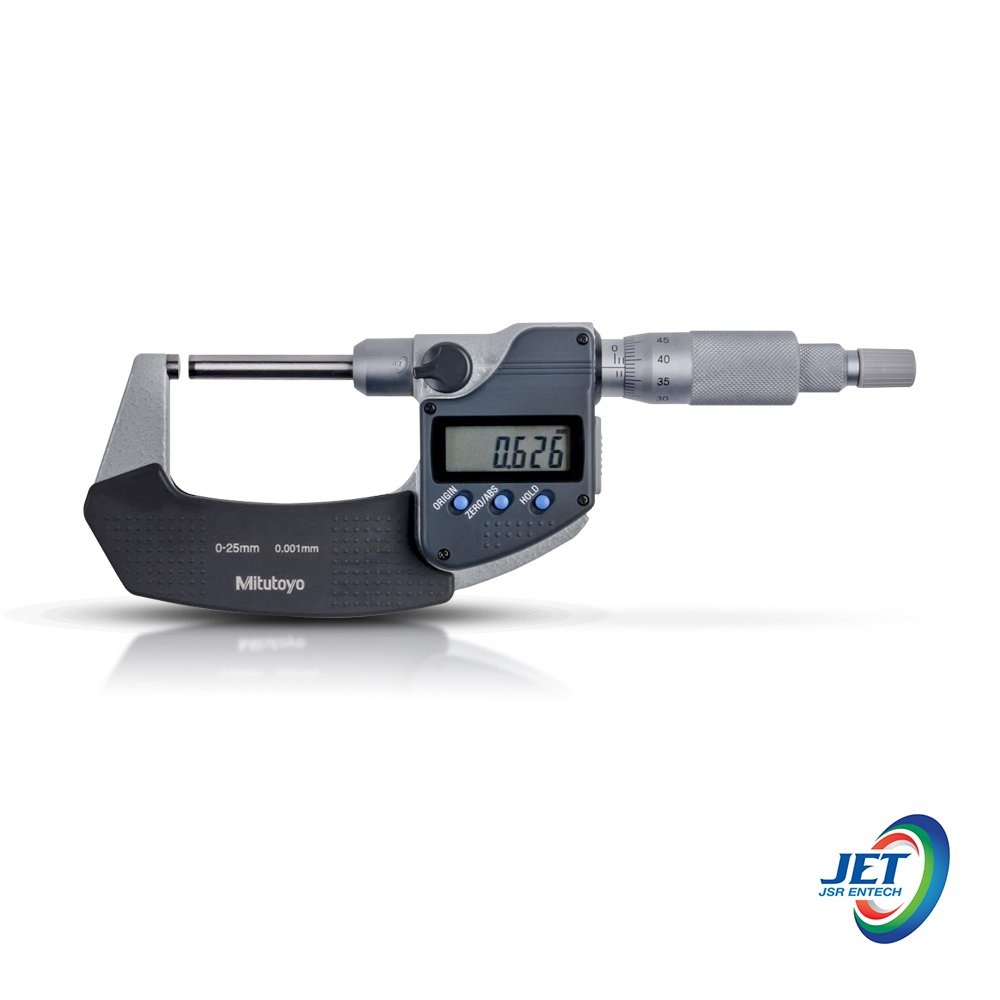

Mitutoyo Outside Micrometers Series 406

Product DescriptionThe non-rotating spindle type does not apply rotational pressure to a measured object and is therefore suitable for measurement of soft materials and thin films.Measuring face of the spindle is carbide tipped.Spindle ø6.35 mm.Equipped with Ratchet Stop for constant measuring force. Specification ( Model Unit : Metric )Order No.Range(mm)  Resoiution(mm)Maximum permissble (μm)Flatness(μm)Parallelism(μm)  406-250-300-250.001±30.3 3 406-251-3025-500.001 ±3 0.3  3   406-252-30 50-75 0.001   ±3  0.3  3  406-253-3075-1000.001±40.34 Specification ( Model Unit : Inch )Order No.Range(in)ResoiutionMaximum permissble (in) Flatness(in)Parallelism(in)  406-350-300-10.00005 in/ 0.001 mm±0.00150.0000120.000012 406-351-301-20.00005 in/ 0.001 mm±0.00150.000012 0.000012  406-352-30  2-3 0.00005 in/ 0.001 mm±0.0015 0.0000120.000012 406-353-303-40.00005 in/ 0.001 mm±0.00020.0000120.000016
