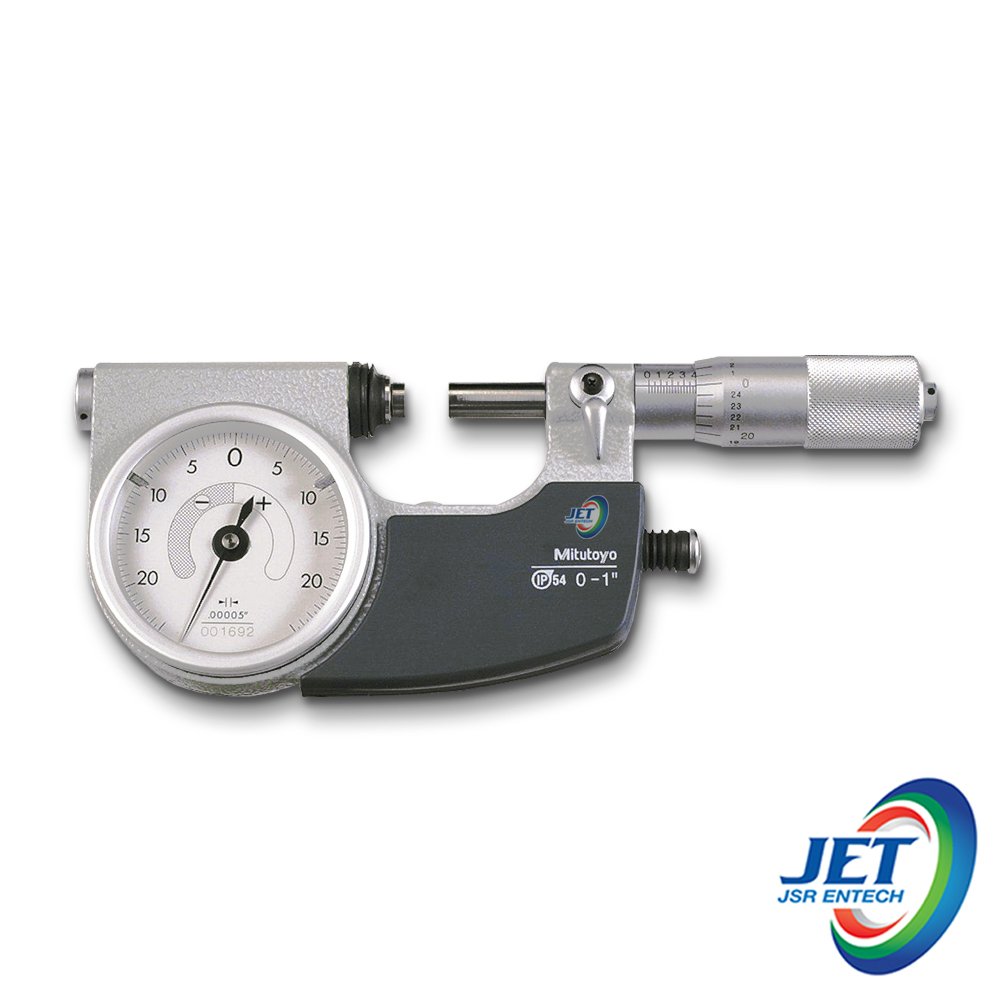

Mitutoyo Indicating Micrometer Series 510

Product DescriptionSuitable for pass/fail judgement of mass-produced components.Easy to use when operating one-handed due to retractable anvil.In the 25 mm measuring range, the model lineup offers a choice of left or right positioning of the anvil-retraction button.Greatly improved accuracy: indication error and graduation of 1 µm.IP protection level: 54, coolant-splash resistant during grinding process.Specification ( Model Unit : Metric ) - Retractable anvil button - Right side.Order No.Range (mm)Spindle feed error (µm)Flatness (µm)Parallelism (µm)Dispersion of indication (µm)Dial indication accuracy (µm)Indicating range (mm)Graduation (mm)Dial graduation (mm)Measuring force (N)Anvil retraction buttonMass (g)510-1210-2530.30.60.41±0.060.0010.0015-10ด้านขวา520Specification ( Model Unit : Inch ) - Retractable anvil button - Right side.Order No.Range (in)Spindle feed error (in)Flatness (in)Parallelism (in)Dispersion of indication (in)Dial indication accuracy (in)Indicating range (in)Graduation (in)Dial graduation (in)Measuring force (N)Anvil retraction buttonMass (g)510-131250.000150.0000120.0000240.000020.00005±0.00230.00010.000055-10ด้านขวา520Measurment example - Retractable anvil button - Right side.Specification ( Model Unit : Metric ) - Retractable anvil button - Left side.Order No.Range (in)Spindle feed error (µm)Flatness (µm)Parallelism (µm)Dispersion of indication (µm)Dial indication accuracy (µm)Indicating range (mm)Graduation (mm)Dial graduation (mm)Measuring force (N)Anvil retraction buttonMass (g)510-1410-2530.30.60.41±0.060.0010.0015-10ด้านซ้าย530510-12225-5030.30.60.41±0.060.0010.0015-10ด้านซ้าย670510-12350-7530.310.41±0.060.0010.0015-10ด้านซ้าย820510-12475-10030.310.41±0.060.0010.0015-10ด้านซ้าย970 Specification ( Model Unit : Inch ) - Retractable anvil button - Left side.Order No.Range (in)Spindle feed error (in)Flatness (in)ParallelismDispersion of indication (in)Dial indication accuracy (in)Indicating range (in)Graduation (in)Dial graduation (in)Measuring force (N)Anvil retraction buttonMass (g)510-1510-10.000150.0000120.0000240.000020.00005±0.00230.00010.000055-10ด้านซ้าย530510-1321-20.000150.0000120.0000240.000020.00005±0.00230.00010.000055-10ด้านซ้าย670510-1332-30.000150.0000120.00004 0.000020.00005±0.00230.00010.000055-10ด้านซ้าย820510-1343-40.000150.0000120.00004 0.000020.00005±0.00230.00010.000055-10ด้านซ้าย970Measurment example - Retractable anvil button - Left side.
