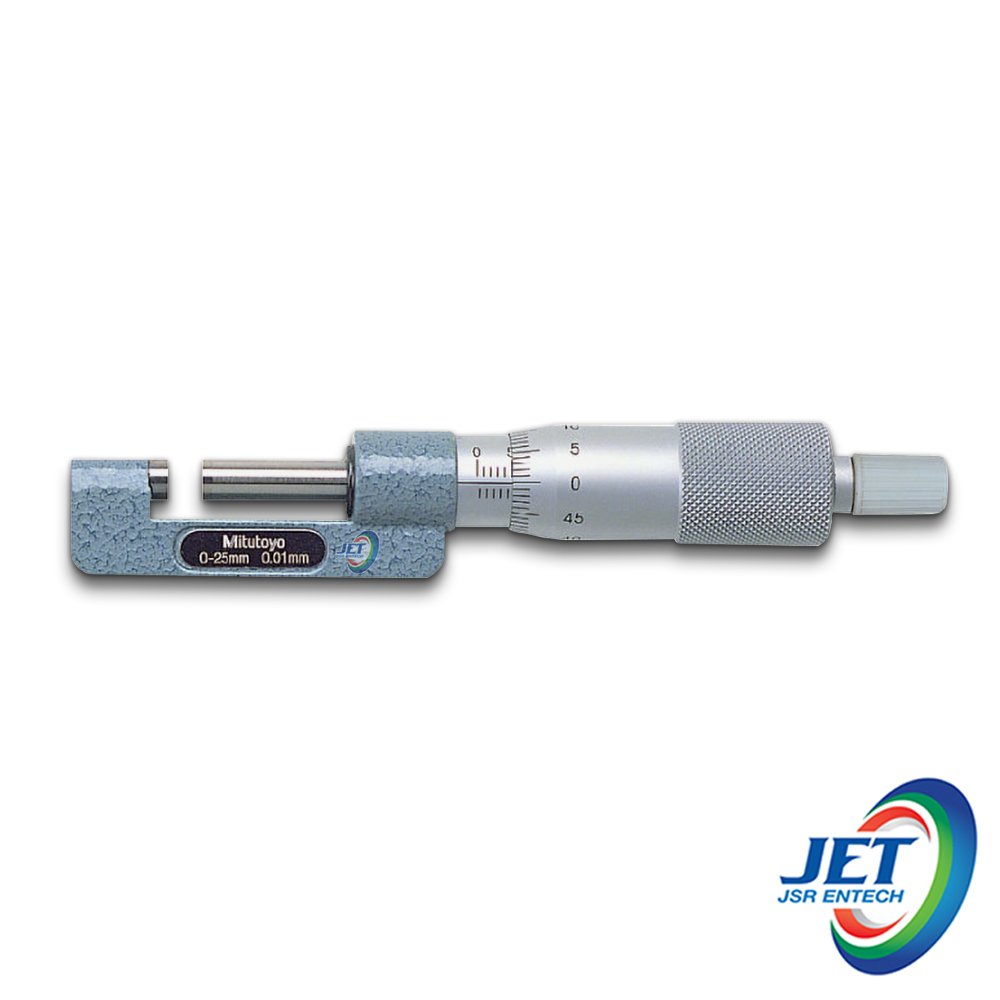

Mitutoyo Hub Micrometer Series 147

Product DescrptionsMeasures hub thickness and shoulders inside a bore.Measuring faces: Carbide.Equipped with Ratchet Stop for constant measuring force. Specification ( Model Unit : Metric )Order No.Range (mm)Graduation (mm)Maximum permissible error JMPE (μm)Flatness (μm)Parallelism (μm)147-3010-250.01±20.63147-30225-500.01±20.63147-30350-750.01±20.63147-30475-1000.01±30.63 Specification ( Model Unit : Inch ) Order No.Range (in)Graduation (in)Maximum permissible error JMPE (in)Flatness (in)Parallelism (in)147-3510-10.001±0.0001 0.0000240.00012147-3521-20.001±0.0001 0.0000240.00012147-3532-30.001±0.0001 0.0000240.00012147-3543-40.001±0.000150.0000240.00012 Measurement example
