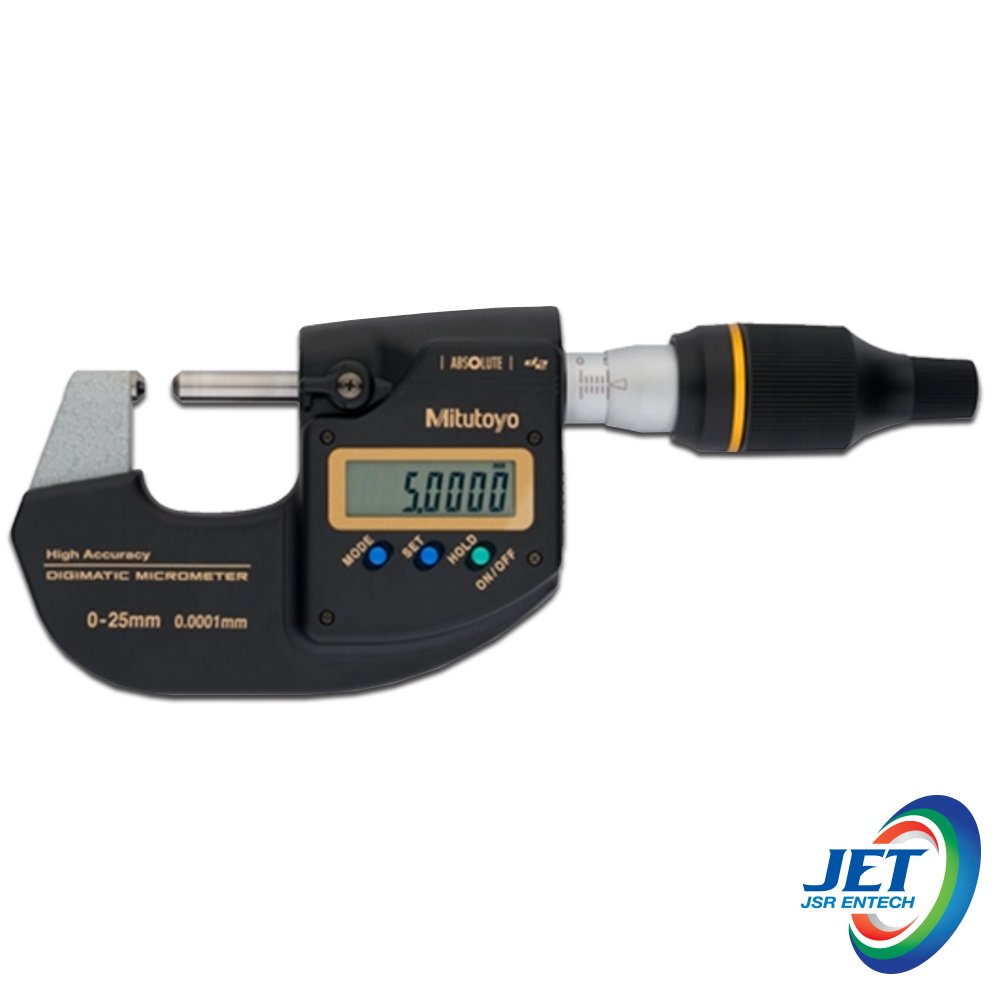

Mitutoyo High-Accuracy Digimatic Micrometer

Product descriptionEnabling 0.1 μm resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a hand-held tool.The High-Accuracy Digimatic Micrometer utilizes Mitutoyo’s innovative 0.1 μm resolution ABS (absolute) rotary sensor and high-accuracy screw machining technology to reduce the Maximum permissible error to ±0.5 μm, delivering higher accuracy without sacrificing operability.A highly rigid frame and high-performance constant-force mechanism enable more stable measurement, while the clicks emitted while the workpiece is being measured assure the operator that measurement is proceeding normally.Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements.The ABS (absolute) rotary sensor also eliminates the need to perform origin setting each time the power is turned on, letting you start measuring straight away. With no possibility of overspeed errors, the High-Accuracy Digimatic Micrometer also delivers a higher level of reliability.Carbide-tipped measuring facesSpecification ( Model Unit : Metric)Order No.Measuring rangeResolutionMaximum permissibleerror JMPEFlatness/ParallelismMeasuring surfaceMeasuring forceMassPower supply293-100-200-25 mm0.0001mm /0.0005 mm(switchable)±0.5 μm0.3 μm/0.6 μmø3.2 mm7 to 9 N400 g (440 g with heat shield attached) Lithium battery (CR2032) ×1Specification ( Model Unit : Inch/Metric)Order No.Measuring rangeResolutionMaximum permissibleerror JMPEFlatness/ParallelismMeasuring surfaceMeasuring forceMassPower supply293-130-200-1"0.000005"/0.00002"0.0001 mm/0.0005 mm(switchable)±0.00002"0.000012"/0.000024"ø3.2 mm7 to 9 N400 g (440 g with heat shield attached) Lithium battery (CR2032) ×1
