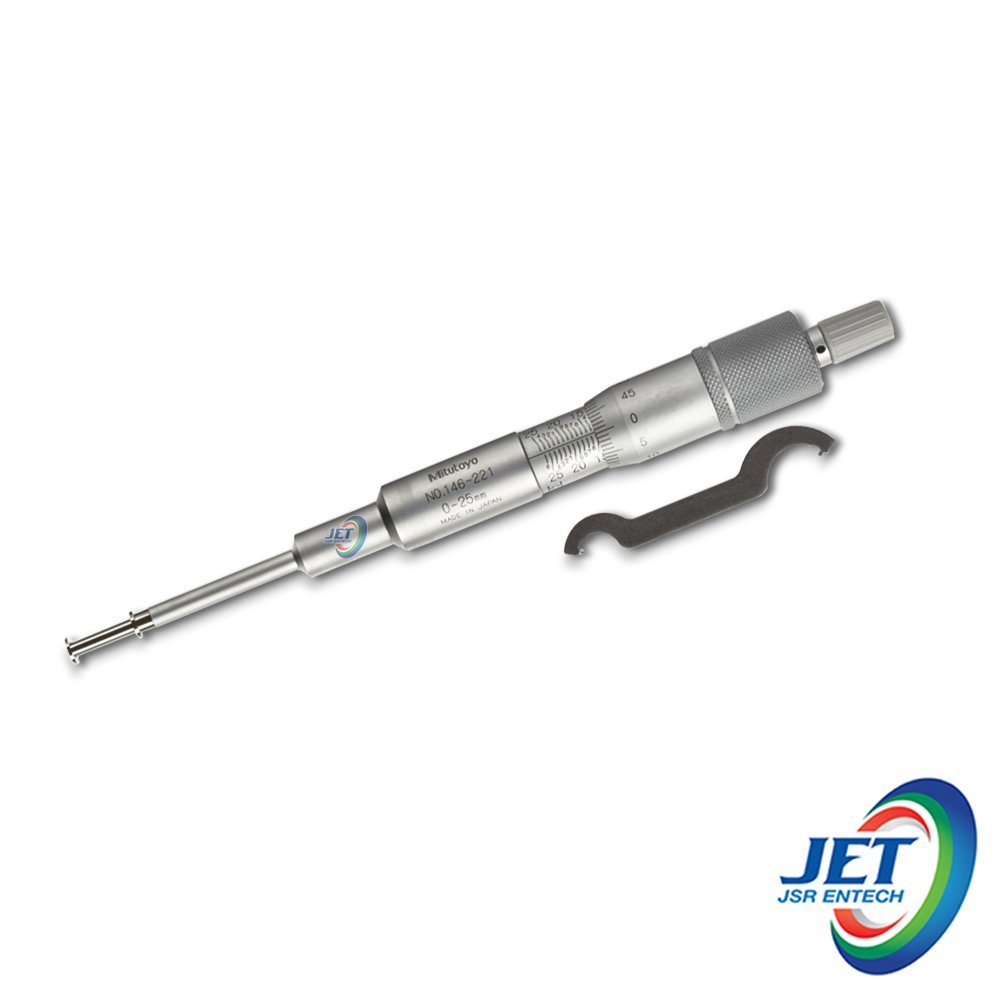

Mitutoyo Groove Micrometers Series 146

Product DescriptionFlanged spindle and anvil for measuring width and location of grooves inside bores and tubes.Two-directional ratchet stop.For ID and OD (except for 0 - 25 mm) measurement, a master gage is required for adjusting the reference point. Non-rotating spindle.Specification ( Model Unit : Metric )Order No.Range Inside (mm)Range Outside (mm)Graduation (mm)Maximum permissible error JMPE (µm)Parallelism (µm)Flange (mm)146-2211.6-26.50-250.01 ±1010Ø6.35146-2221.6-26.50-250.01±1010Ø12.7146-2236.5-51.525-500.01 ±1010Ø12.7146-22451.5-76.5250-750.01 ±1010Ø12.7146-22576.5-101.575-1000.01 ±1010Ø12.7 Specification ( Model Unit : Inch )Order No.Range Inside (in)Range Outside (in)Graduation (in)Maximum permissible error JMPE (in)Parallelism (in)Flange (in)146-2310.055-1.050-10.001±0.00040.0004Ø0.25146-2320.055-1.051-20.001±0.00040.0004Ø0.5 146-2331.05-2.052-30.001±0.00040.0004Ø0.5 146-2342.05-3.053-40.001±0.00040.0004Ø0.5 146-2353.05-4.053-40.001±0.00040.0004 Ø0.5   Measurement example
