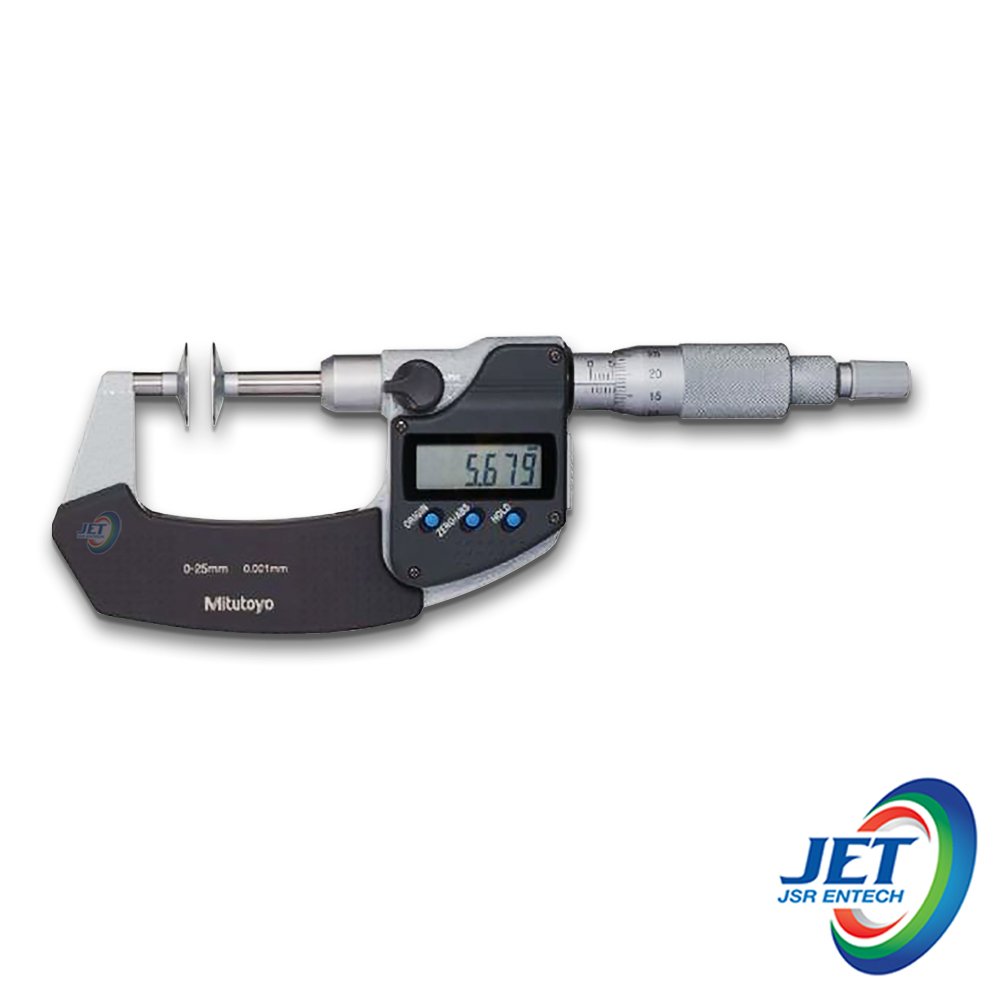

Mitutoyo Disk Micrometers Series 369

Product DescrptionsMeasures “root tangent length” of spur gears and helical gears.Non-rotating spindle type.Measurable range of gear pitch: 0.5 to 6 module.Equipped with Ratchet Stop for constant measuring force.Specification ( Model Unit : Metric )Order No.Range(mm) Resolution (mm)Anvil dia.(mm)Maximum permissible error (μm) Flatness(μm)Parallelism(μm)Measuring force (N)   Digimatic (LCD)369-250-300-25 0.00120±4143-8369-251-3025-50 369-252-3050-75 ±6 6369-253-3075-100  Specification ( Model Unit : Inch/Metric )Order No.Range(in)  Resolution (in)Anvil dia.(in)Maximum permissible error (in)Flatness(in)Parallelism(in)Measuring force (N)   Digimatic (LCD)369-350-300-10.00005 in/0.001 mm0.787±0.00020.000040.00023-8369-351-301-2369-352-302-3±0.0003 0.0003369-353-303-4Specification ( Model Unit : Metric )Order No.Range(mm)ResolutionAnvil dia.(mm)Maximum permissible error (μm) Flatness(mm)Parallelism(mm)Measuring force (N)   Quickmike type (LCD)369-411-200-300.00120±4143-8369-412-2025-550.00120±4143-8Specification ( Model Unit : Inch/Metric )Order No.Range(in) ResolutionAnvil dia.(in)Maximum permissible error (in)Flatness(in)Parallelism(in)Measuring force (N)   Quickmike type (LCD)369-421-200-1.20.00005 in/0.001 mm0.787±0.00020.000040.00023-8369-422-201-2.20.787±0.00020.000040.00023-8
