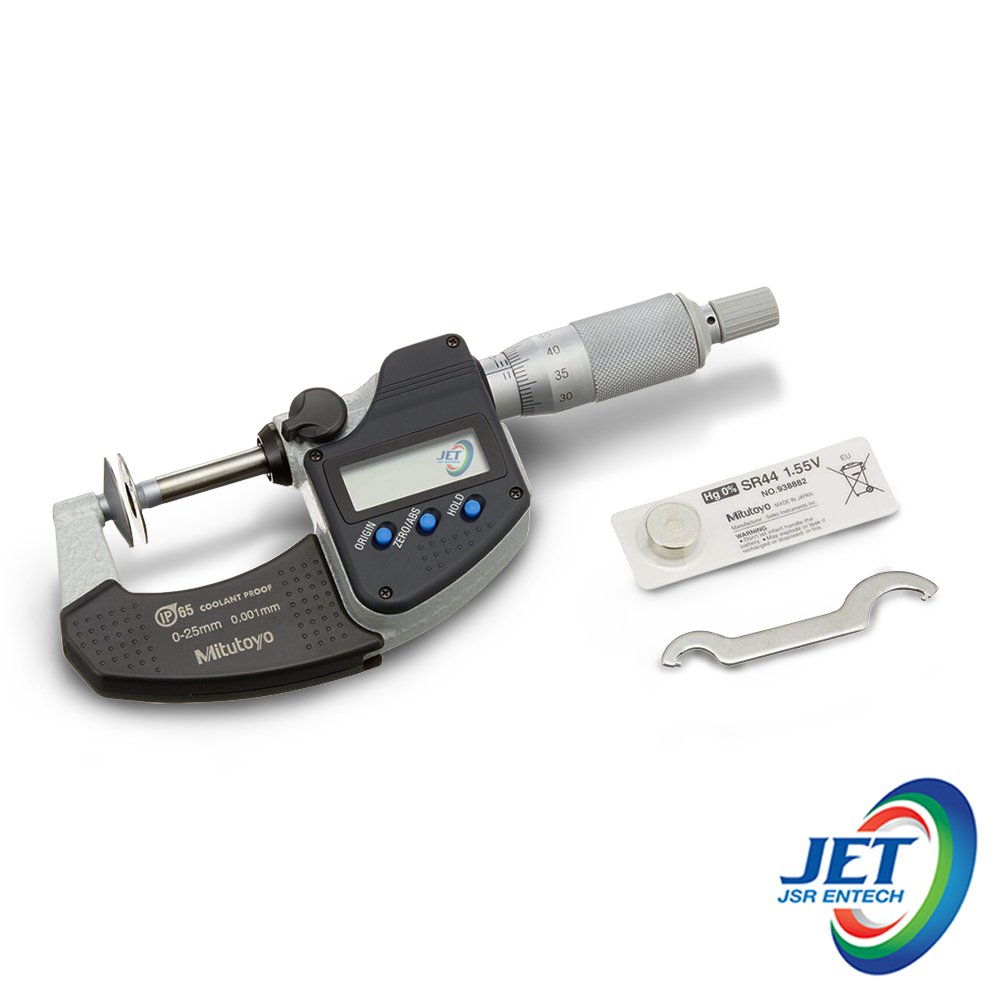

Mitutoyo Disk Micrometers Series 323

Product DescriptionMeasures "root tangent length" of spur gears and helical gears.Determination of the tangent length : refer to "Quick Guide to Precision Measuring Instruments"Equipped with rachet stop for constant measuring force.Supplied with a setting standard (except for 0 to 25 mm/0 to 1 in measuring range).Specification ( Model Unit : Metric )Order No.Range (mm) Resolution (mm) Maximum permissble error (μm)flatness (μm)Parallelism(μm)Anvil dia(mm)Measurable moduleDigimatic (LCD)323-250-300-250.001±414Ø200.5-6323-251-3025-50±414Ø200.5-6323-252-3050-75±516Ø200.5-6323-253-3075-100±516Ø200.5-6 Specification ( Model Unit : Inch)Order No.Range (Inch) Resolution (Inch) Maximum permissble error (Inch)flatness (Inch)Parallelism(Inch)Anvil dia(Inch)Measurable moduleDigimatic (LCD)323-350-300-10.00005±0.00020.000040.00020.7870.5-6323-351-301-2±0.00020.000040.00020.7870.5-6323-352-302-3±0.00030.000040.00030.7870.5-6323-353-303-4±0.00030.000040.00030.7870.5-6 Measurement example.
