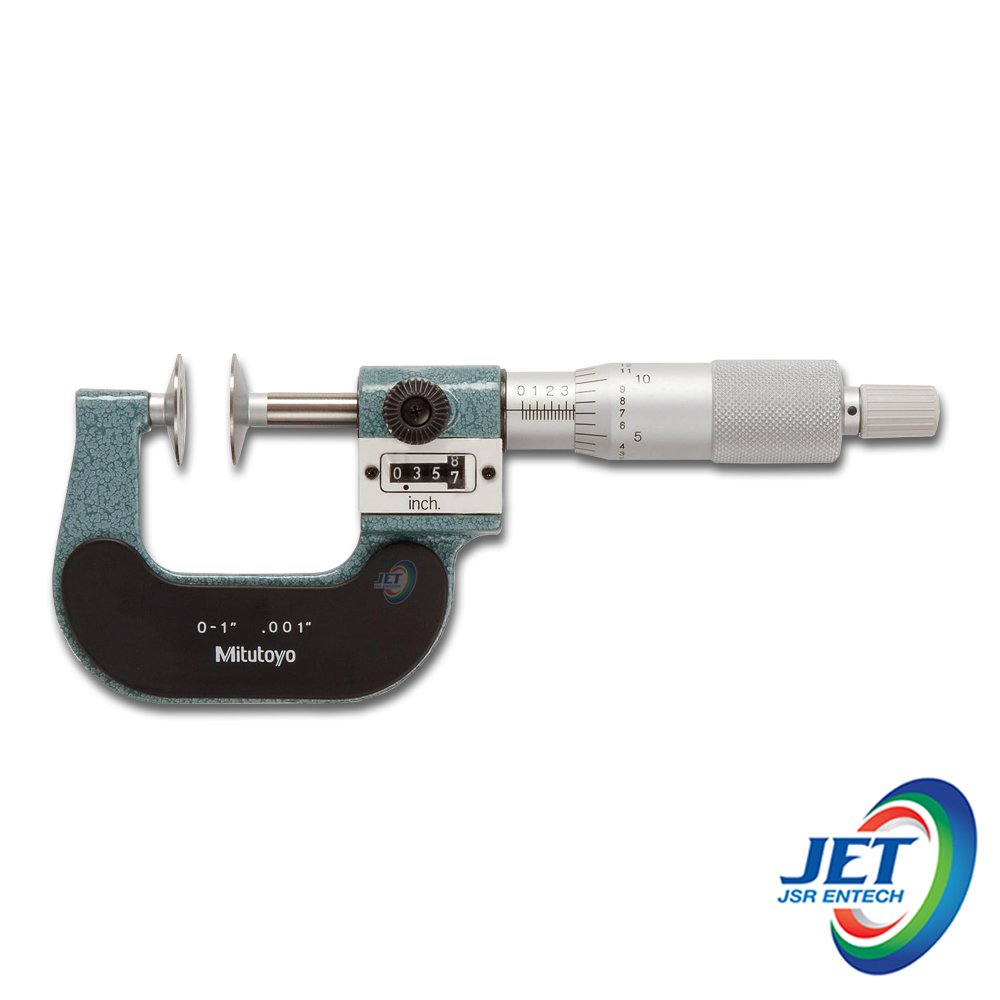

Mitutoyo Disk Micrometers Series 223

Product DescriptionMeasures "root tangent length" of spur gears and helical gears.Equipped with Ratchet Stop for constant measuring force.Supplied with a setting standard (except for 0 to 25 mm/0 to 1 in measuring range).Specification ( Model Unit : Metric )Order No.Range(mm)Graduation (mm)Maximum permissible error (μm) Flatness(μm)Parallelism(μm)Anvil dia. (mm)Measurable moduleMechanical counter model223-1010-250.01±414Ø200.5-6223-10225-500.01±414Ø200.5-6Specification ( Model Unit : Inch )Order No.Range(in)Graduation (in)Maximum permissible error (in) Flatness(in)Parallelism(in)Anvil dia. (in)Measurable moduleMechanical counter model223-1250-10.001±0.00020.000040.00020.7870.5-6
