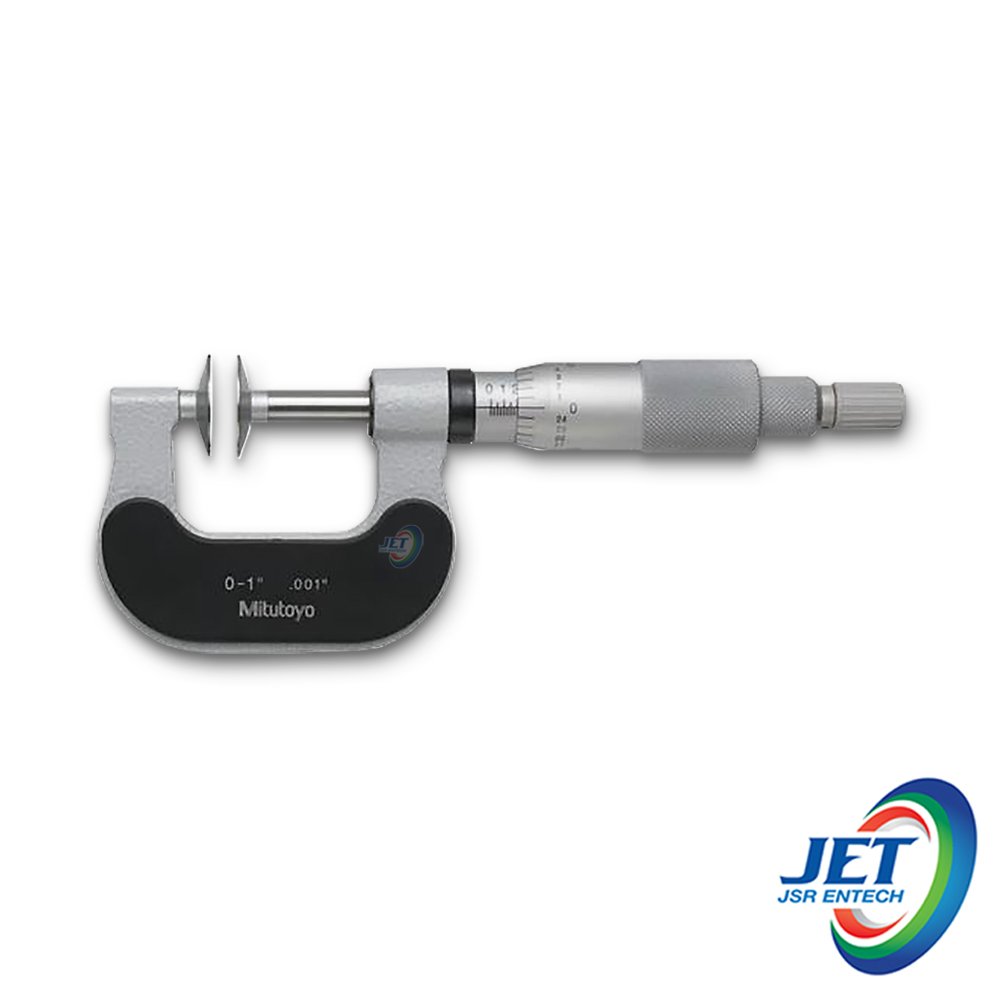

Mitutoyo Disk Micrometers Series 169

Product DescrptionsMeasures "root tangent length" of spur gears and helical gears.Determination of the root tangent length : refer "Quick Guide to Precision Measuring Instruments"Non-rotating spindle type.Measurable range of gear pitch : 0.5 to 6Equipped with Ratchet Stop for constant measuring force.Specification ( Model Unit : Metric ) Order No.Range (mm) Graduation (mm)Maximum permissble error JMPE (μm) Flatness(μm)Parallelism(μm)Anvil dia. (mm)Measuring force (N)Analog169-201-100-250.01±414203-8169-203-1025-500.01±414203-8169-205-1050-750.01±616203-8169-207-1075-1000.01±616203-8Specification ( Model Unit : Inch ) Order No.Range (Inch) Graduation (Inch)Maximum permissble error JMPE(Inch) Flatness(Inch)Parallelism(Inch)Anvil dia. (Inch)Measuring force (N)Analog169-201-100-10.001±0.0020.00040.00020.7873-8169-203-101-20.001±0.0020.00040.00020.7873-8169-205-102-30.001±0.0030.00040.00030.7873-8169-207-103-40.001±0.0030.00040.00030.7873-8
