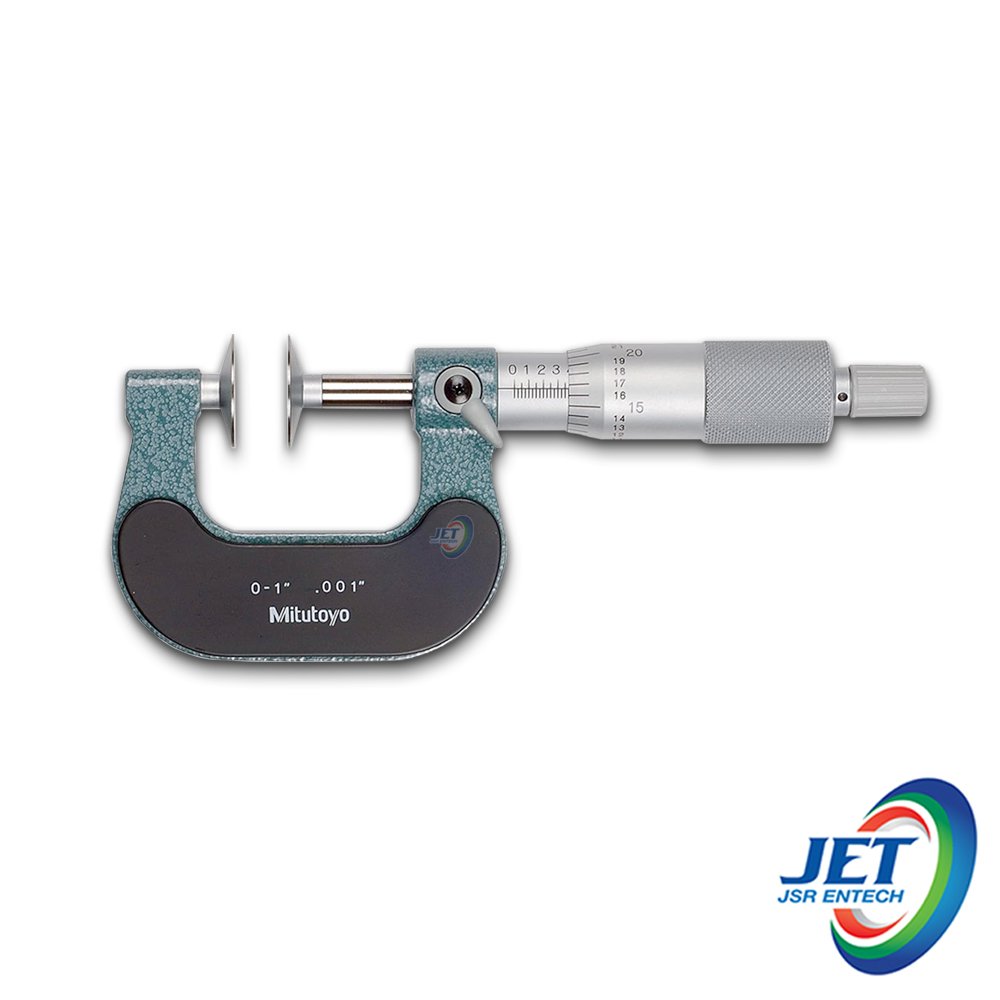

Mitutoyo Disk Micrometers Series 123

Product DescrptionsMeasures "root tangent length" of spur gears and helical gears.Equipped with Ratchet Stop for constant measuring force.Supplied with a setting standard (except for 0 to 25 mm/0 to 1 in measuring range).Specification ( Model Unit : Metric )Order No.Range (mm)Graduation (mm)Maximum permissible error (μm) Flatness(μm)Parallelism(μm)Anvil dia. (mm)Measurable moduleAnalog123-1010-250.01±414Ø200.5-6123-113*123-10225-50123-114*123-10350-75±66123-115*123-10475-100123-116*123-105100-125±71.67Ø300.7-11123-106125-150123-107150-175±88123-108175-200123-109200-225123-110225-250±99123-111250-275123-112275-300* The measuring disks have carbide tip = จานวัดมีปลายคาร์ไบด์Specification ( Model Unit : Inch )Order No.Range (in) Graduation (in)Maximum permissible error (in) Flatness(in)Parallelism(in)Anvil dia. (in)Measurable moduleAnalog123-1250-10.001±0.00020.000040.00020.7870.5-6123-1261-2123-1272-3±0.00030.0003123-1283-4
