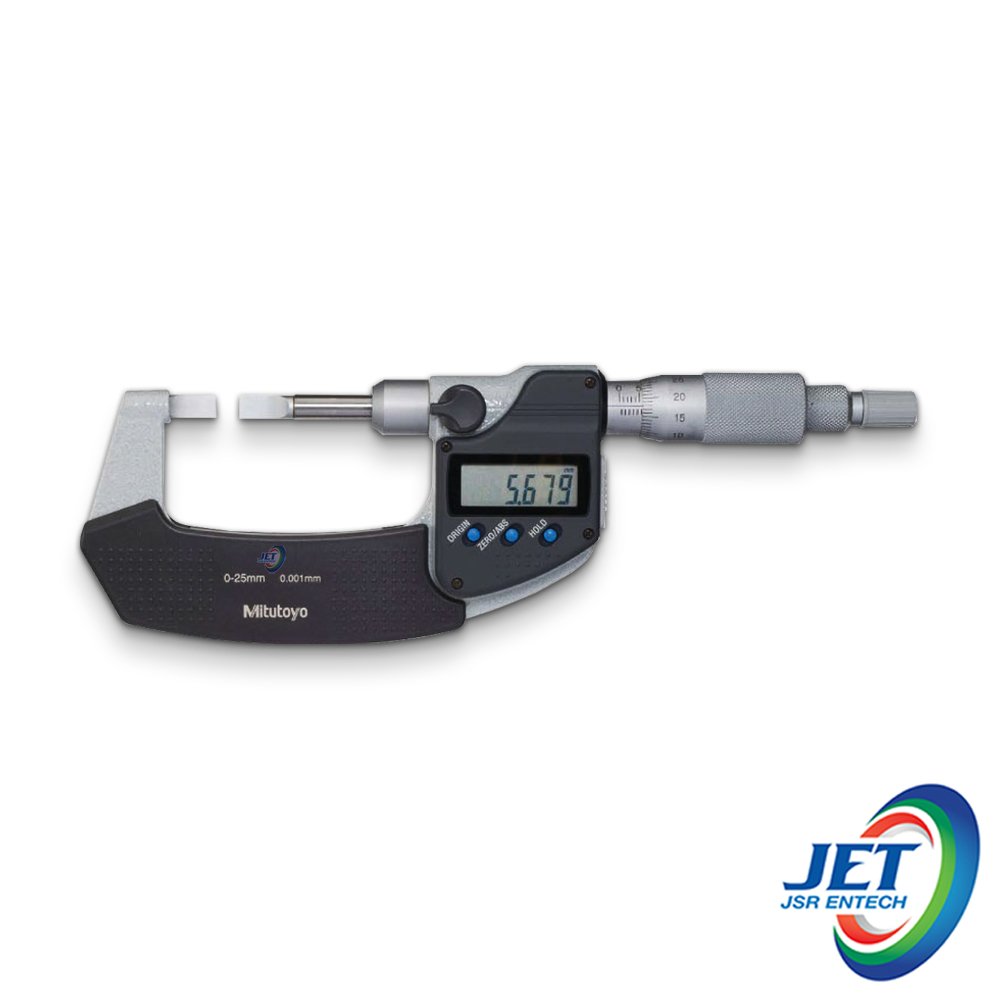

Mitutoyo Digital Blade Micrometer Series 422

Product DescrptionsThe anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features.Carbide-tipped measuring faces are available.Non-rotating spindle type.Equipped with Ratchet Stop for constant measuring force.Specification ( Model Unit : Metric )Order No.Range (mm)Resolution (mm)Maximum permissible Error JMPE (μm)Parallelism (μm)Remark   Digimatic (LCD)422-230-300-250.001±33Type A422-231-3025-500.001±33Type A422-232-3050-750.001±33Type A422-233-3075-1000.001±44Type A422-260-300-250.001±33Type B422-261-3025-500.001±33Type B422-270-300-250.001±33Type C422-271-300-250.001±33Type DSpecification ( Model Unit : Inch/Metric )Order No.Range (in)ResolutionMaximum permissible Error JMPE (in)Parallelism (in)Remark   Digimatic (LCD)422-330-300-10.0005 in/0.001 mm±0.000150.00015Type A422-331-301-2±0.000150.00015Type A422-332-302-3±0.000150.00015Type A422-333-303-4±0.0002  0.0002  Type A422-360-300-1±0.000150.00015Type B422-361-301-2±0.000150.00015Type B422-370-300-1±0.000150.00015Type C422-371-300-1±0.000150.00015Type DSpecification ( Model Unit : Metric ) Quickmike type.Order No.Range (mm)Resolution (mm)Maximum permissible error JMPE (μm)Parallelism (μm)Remark    Digimatic (LCD)422-411-200-300.001±33Type A422-412-2025-55±33Type ASpecification ( Model Unit : Inch/Metric ) Quickmike type.Order No.Range (in)ResolutionMaximum permissible error JMPE (in)Parallelism (in)Remark   Digimatic (LCD)422-421-200-1.20.0005 in/0.001 mm±0.000150.00015Type A
