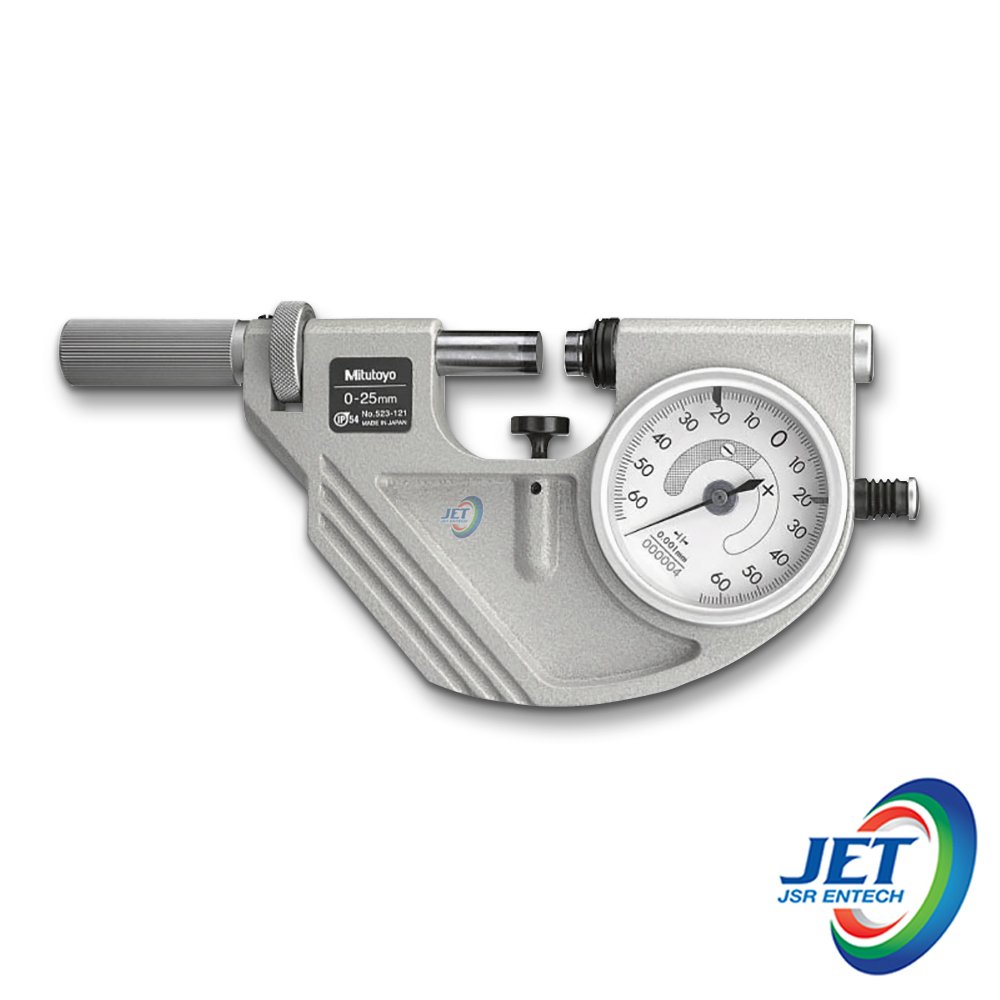

Mitutoyo Dial Snap Meter Series 523

Product DescriptionSuited for the measurement of mass-produced parts.Various indicators (optional) are available to suit accuracy and resolution requirements.Measuring faces: Carbide.Specification ( Model Unit : Metric )Order No.Range (mm)Dial graduation (mm)Measuring force (N)Flatness (µm)Parallelism (µm)Dispersion of indication (µm)Dial indication accuracy (µm)Indicating range (mm)Mass (g)523-1210-250.0015-100.30.60.41±0.06740523-12225-500.0015-100.30.6 0.41±0.06840523-12350-750.0015-100.31 0.41±0.06950523-12475-1000.0015-100.31 0.41±0.061080 Specification ( Model Unit : Inch )Order No.Range (in)Dial graduation (in)Measuring force (N)Flatness (in)Parallelism (in)Dispersion of indication (in)Dial indication accuracy (in)Indicating range (in)Mass (g)523-1310-10.000055-100.0000120.0000240.000020.00005±0.0023740523-1321-20.000055-100.0000120.0000240.000020.00005±0.0023840523-1332-30.000055-100.0000120.0000240.000020.00005±0.0023950523-1343-40.000055-100.0000120.0000240.000020.00005±0.00231080 Measurement example
