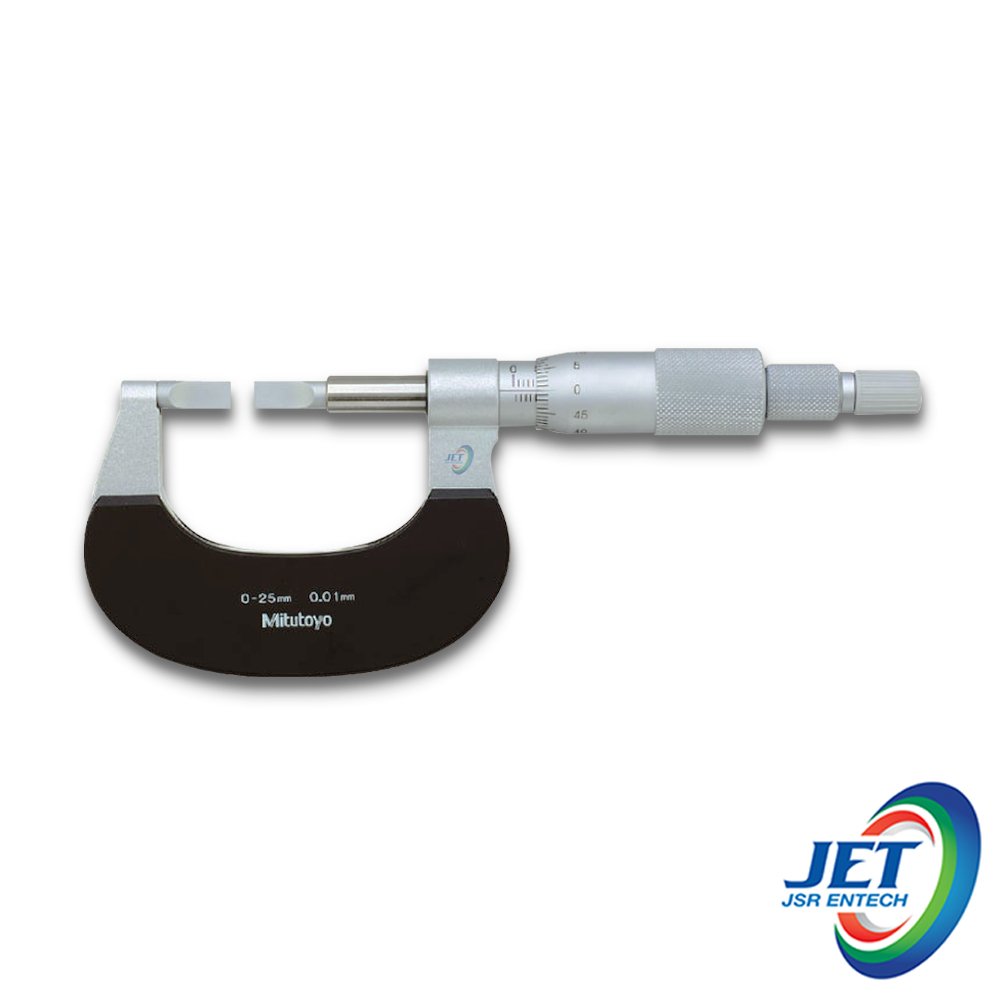

Mitutoyo Blade Micrometer Series 122

Product DescrptionsThe anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features.Carbide-tipped measuring faces are available.Non-rotating spindle type.Equipped with Ratchet Stop for constant measuring force.Specification ( Model Unit : Metric ) Order No.Range (mm)Graduation (mm)Maximum permissible error JMPE (μm)Parallelism (μm)Remark   Analog122-101-100-250.01±33Type A122-102-1025-500.01±33Type A122-103-1050-750.01±33Type A122-104-1075-1000.01±44Type A122-105-10100-1250.01±45Type A122-106-10125-1500.01±45Type A122-107-10150-1750.01±55Type A122-108-10175-2000.01±55Type A122-109-10200-2250.01±56Type A122-110-10225-2500.01±66Type A122-115-10250-2750.01±66Type A122-116-10275-3000.01±66Type A 122-111-100-250.01±33Type B122-112-1025-500.01±33Type B   Analog (With carbide tip)122-161-100-250.01±33Type C122-162-1025-500.01±33Type C122-141-100-250.01±33Type D122-142-1025-500.01±33Type DSpecification ( Model Unit : Metric )Order No.Range (in)Graduation (in)Maximum permissible error JMPE (in)Parallelism (in)Remark   Analog122-125-100-10.0001±0.000150.00015Type A122-126-101-20.0001±0.000150.00015Type A122-127-102-30.0001±0.000150.00015Type A122-128-103-40.0001±0.0002 0.0002 Type A122-135-100-10.0001±0.000150.00015Type B122-151-100-10.0001±0.000150.00015Type D
