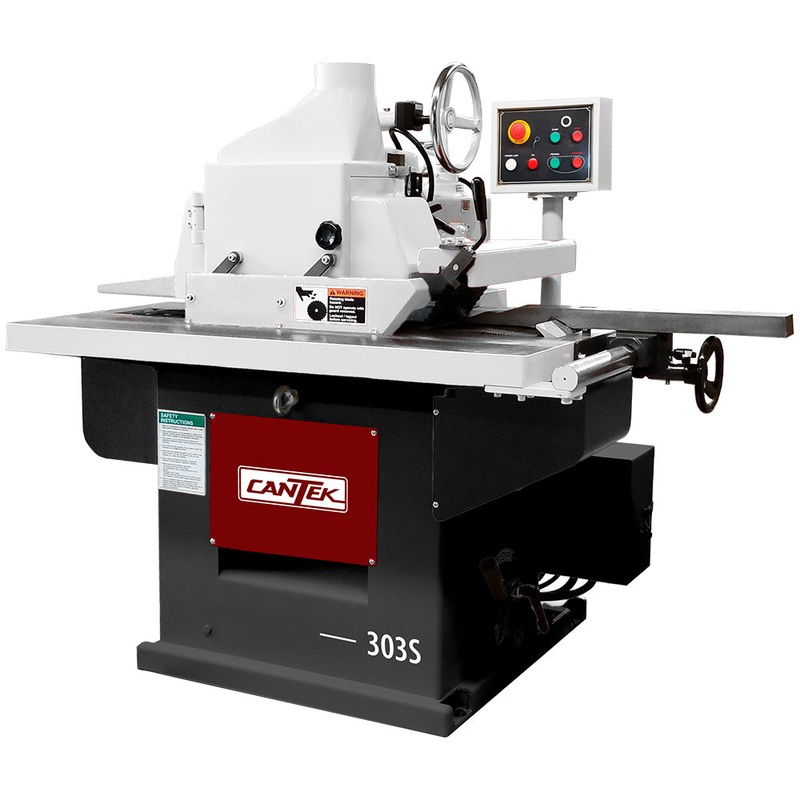

Cantek 303S 12″ Straight Line Ripsaw

Our Easy Purchase Guarantee: In stock as of 12.2.25 Freight included in price.* The Cantek 303S single-blade ripsaw is a straight-line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material. The 303S automatically feeds the material for consistent rip results. The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting. A powerful 10 HP motor with maximum 12 blade provides a cutting depth up to 3.35. A micro-adjustable infeed fence allows for quick setups to ensure precise rip widths with fast adjustments. The precision-built saw arbor constructed from nickel chrome steel ensures precision cutting without vibration. Cast iron chain and track assembly are precision machined and hardened for maximum wear resistance and superior cut quality. A total of 6 hold-down rollers ensure the workpiece is held firmly onto the feed chain during cutting operations. Proper material hold-down ensures precise straight cutting with optimum edge quality. Equipped with an electronic lubricator to automatically lubricate the chain track to ensure maximum wear resistance and a long chain & track life. The operator can quickly and easily change feed speeds according to the material being cut. Feed speeds can be changed from 50, 65, & 85 FPM. The operator controls are located at the operator’s eye level. In addition to the blade and feed controls, the panel has a low oil display light which will illuminate when the oil in the lubricator reservoir is low. When it goes beyond the low limit, the saw will stop until it is refilled. Please note: Due to rebranding, images of machine features may differ in color. All features listed are still included with the machine. If you need a quote, we would be happy to provide one. Call 260-637-0054 or email [email protected] Note: Cannot ship to Pennsylvania or California. [TABS] Features Rigid machine body consists of a thick welded steel frame with an integral table which is fitted with a sturdy cast column. Precision-built saw arbor constructed to ensure precision cutting without vibration. Cast iron upper assembly & cast iron table with superior vibration damping for optimum results Micro-adjustable fence by rack and pinion for fast setups with precise results Cast iron chain and track assembly is precision machined and hardened for maximum wear resistance with superior cut quality Two rows of anti-kickback fingers for safe operation Swing down rear table prevents short workpieces and thin edgings from jamming in the machine Electronic chain lubricator provides consistent lubrication to the chain track for optimum wear resistance Powerful 10HP motor Three feed speeds can be externally adjusted for operator convenience Mechanical digital readout for setting the workpiece thickness 12 blade is included Optional laser light for projecting the cutting line Specs Saw arbor diameter: 1Saw blade diameter: 8 12Saw arbor speed: 4,500 RPMFeed speeds: 3 (50, 65, 85 FPM)Maximum workpiece thickness: 3.35Minimum workpiece length: 8Pressure rollers: 4 rows (6 rollers)Distance between saw and column: 13-3/4Arbor motor: 10 HPFeed motor: 1 HPTable size: 30 x 50Table height: 31-7/8Net weight: 1,870lbs.Shipping weight: 2,310lbs.Machine dimensions: 61 x 38 x 53Shipping dimensions: 59 x 46 x 59 *Shipping Please note:Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is alreadyincludedin the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders. [/TABS] Reviews There are no reviews yet. Be the first to review “Cantek 303S 12″ Straight Line Ripsaw” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
